Inspect, Record, Manage Data, and Capture Sound for Spectrum Analysis!
The Ultraprobe 10,000 brings a new dimension to ultrasonic inspection technology. With this system, users can perform condition monitoring, record sounds, and log leaks for advanced data analysis.
Applicable to All Ultrasonic Applications and Programs
-
Create bearing and lubrication routes
-
Inspect and report electrical systems
-
Evaluate steam traps
-
Calculate and report leak costs using the DMS program
Why Choose This Device?
-
Suitable for all inspection, analysis, and reporting applications using ultrasonic technology
-
Provides accurate and repeatable digital data
-
Adjustable frequency range: 20–100 kHz
-
Direct sound recording from the device
-
Ideal for troubleshooting, data analysis, and collection programs
-
Includes free licensed data management (DMS) and spectrum analysis software
Ultratrend DMS™ — Onboard Data Recording
-
Manage inspection routes
-
Transfer data via USB connection
-
Multiple data display options
-
View history in tables or separate pages
-
Generate trend charts
-
Export database and reports in Excel format
Spectralyser™ — Onboard Sound Recording and Analysis
-
Analyze sound files as FFT and time series
-
Generate analytical reports
-
Continue and compare with previous recordings
-
Identify electrical faults
-
Includes a bearing failure calculator
The Ultraprobe 10,000 simplifies sound recording with its Spin & Click™ technology — intuitive and user-friendly. With a single button press, you can record machine sounds directly to the device and store up to 400 recordings in memory.
Test the Way You Want
-
Dedicated application screens
-
Adjustable on/off features
-
Connectivity to external devices
-
Flexible reporting options
Complete Kit for Effective Condition Monitoring
-

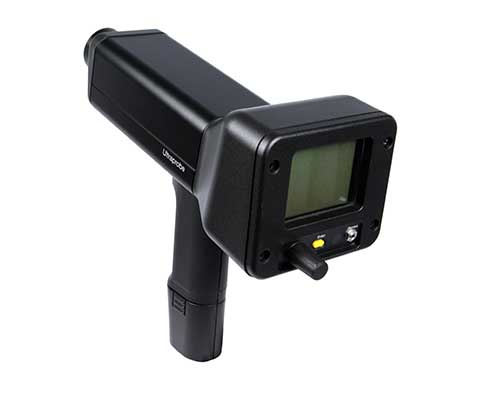

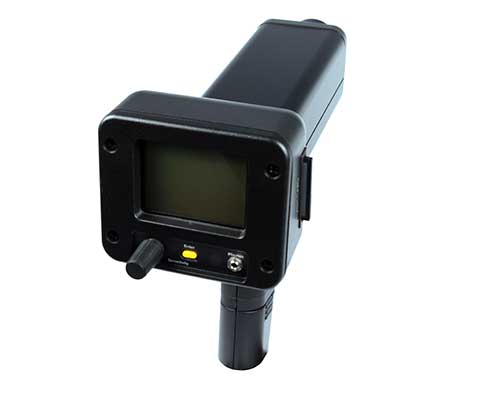

Ultraprobe gun-style main body with display, “Spin & Click” control, headphone jack, flash card slot, and onboard data storage
-
Flash card reader
-
Industrial noise-reducing headset
-
Rechargeable battery kit and charger for main body and warble tone generator
-

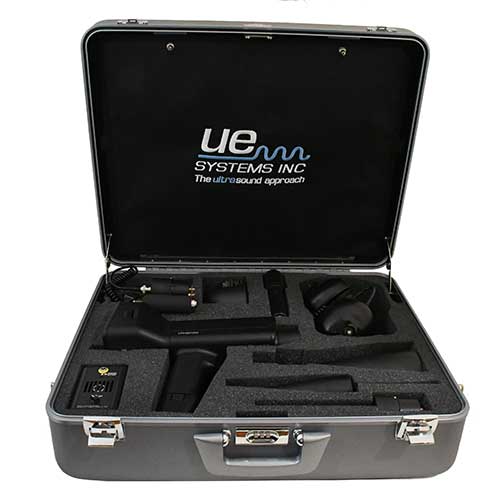

Zero Halliburton aluminum carrying case
-
Warble tone generator with amplitude selection (high/low)
-
Remote Access Module (RAM) for remote sensors
-

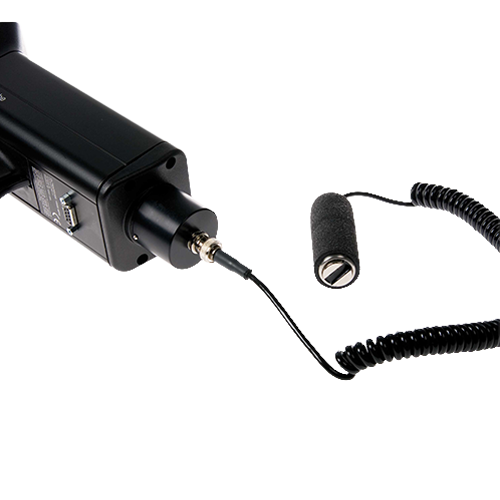

Magnetic cable-mounted Remote Access Sensor (RAS-MT) for bearings and oil-cooled transformers
-
Trisonic scanning module for airborne ultrasound (pressure, vacuum, and electrical emissions)
-

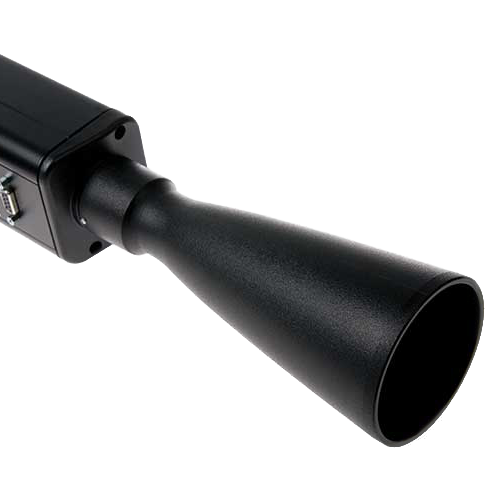

Rubber focusing probe to isolate surrounding sounds
-

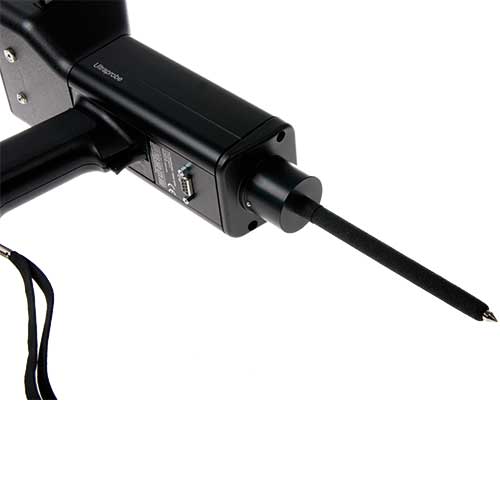

Stethoscope (contact) probe for bearings, valves, and steam traps
-
Extension probe kit (78 cm / 31 in) for increased reach
-
Long Range Module (LRM-10) for greater accuracy and detection range
-
Comprehensive user manual
-
Free licenses and updates for DMS and Spectralyser software
All Ultraprobe instruments are CE certified.
