All Spectrum Analyses, Recordings, Photos, and Temperature Readings — With a Single Touch!
At UE Systems, our development engineers have created a leak detection and condition monitoring system capable of meeting every imaginable factory inspection requirement. The Ultraprobe 15,000 stands out with several unique features:
-
Touchscreen technology
-
Route, image, and sound planning and review directly on the device
-
Multiple data displays: dB / Temperature / Spectrum analysis
-
Infrared thermometer with emissivity adjustment for accurate temperature readings
-
Integrated strobe light for measuring and recording the RPM of rotating equipment
-
Onboard spectrum analyzer for in-field diagnostics
-
Built-in digital camera for capturing inspection points
-
Laser pointer for precise targeting
-
Alarm group review and reporting tools
-
Data, sound, and image recording and storage
-
Review of historical data
-
Applicable to all ultrasonic applications and programs
-
Create bearing data collection and lubrication routes
-
Inspect electrical systems for faults, analyze on-site, and generate reports
-
Evaluate faulty steam traps
-
Locate leaks and calculate cost per leak via DMS reporting
Why Choose This Device?
-
Comprehensive inspection, reporting, and analysis powered by ultrasonic technology
-
Intuitive and fast navigation via touchscreen
-
On-site historical review and spectral analysis
-
Ideal for analysis and data collection programs
-
Includes free licensed data management (DMS) and spectrum analysis software
-
Ultratrend DMS™ enables direct data transfer on the device:
-
Manage inspection routes
-
Send and receive data via USB
-
View multiple data displays
-
Generate historical and summary tables
-
Trend charts and Excel reporting
-
-
Spectralyser™ software allows on-site sound analysis:
-
Analyze audio files as FFT or time series
-
Create analysis reports
-
Continue and compare with previous recordings
-
Identify electrical faults and bearing failures
-

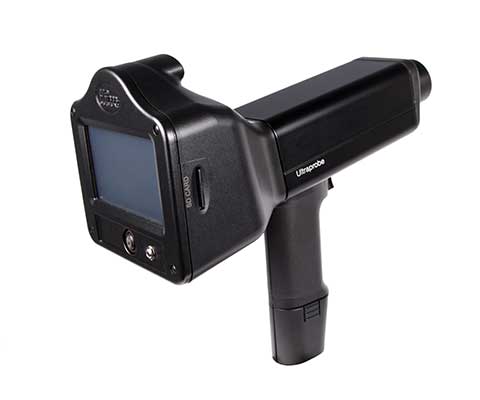

Touchscreen
The Ultraprobe 15,000 features a durable, easy-to-clean touchscreen operating system. Its digital technology ensures that you reach the desired function within just one to three taps — making it the most efficient ultrasonic device in the world.
Complete Kit for Effective Condition Monitoring
-

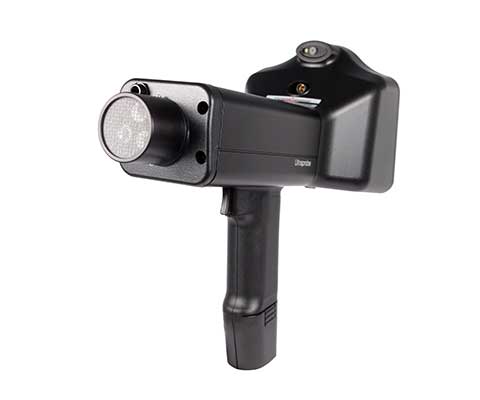

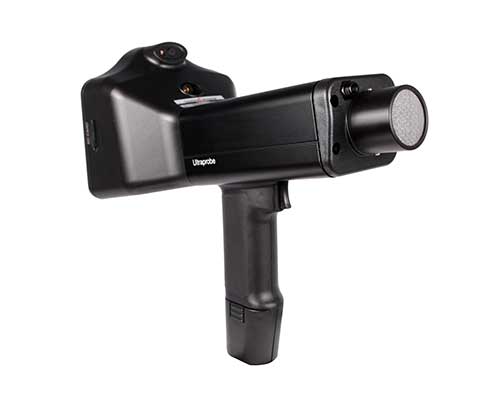

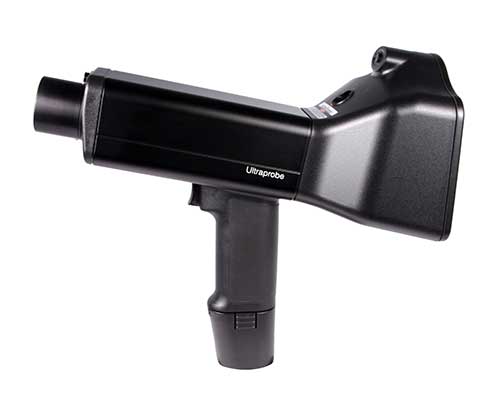

Ultraprobe gun-style main body with touchscreen panel, headphone jack, SD card & module slots, integrated IR temperature sensor, digital camera, laser pointer, onboard spectralyser, and data transfer functions
-
SD card reader
-
Industrial noise-reducing headset
-
Two rechargeable batteries
-
Battery charger kit & desktop charging station (Deskcharger)
-

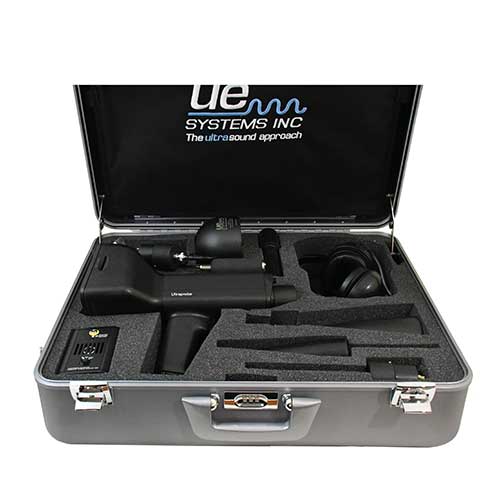

Zero Halliburton aluminum carrying case
-
Warble tone generator with amplitude selection for sound testing
-
Remote Access Module (RAM) for connection to remote sensors
-

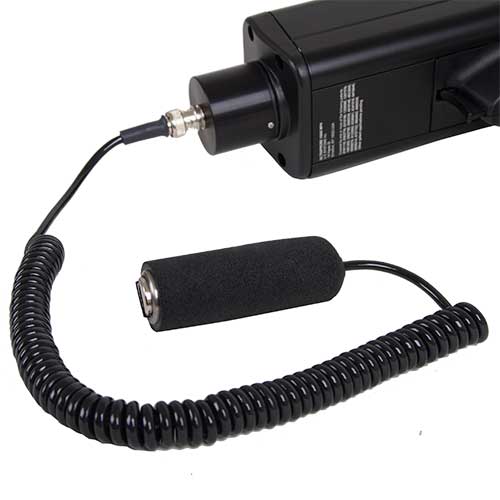

Magnetic cable-mounted Remote Access Sensor (RAS-MT) for bearing and transformer inspection
-
Trisonic scanning module for airborne ultrasound (pressure, vacuum, electrical)
-

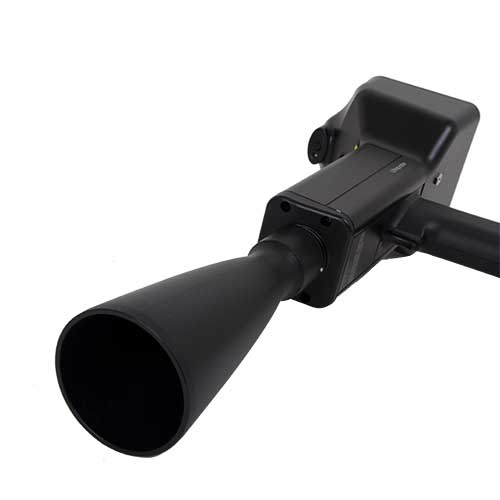

Rubber focusing probe for sound isolation and directional listening
-
Stethoscope contact probe for bearings, valves, and steam traps
-
Extension probe (78 cm / 31 in) for extended reach
-
Long Range Module (LRM-15) for greater detection distance and precision
-
Comprehensive user manual
-
Free software licenses and updates for DMS and Spectralyser
All Ultraprobe instruments are CE certified.
