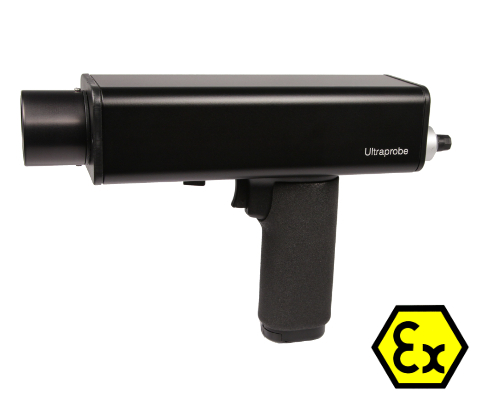

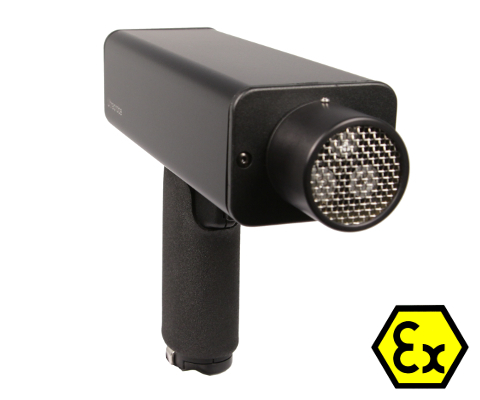

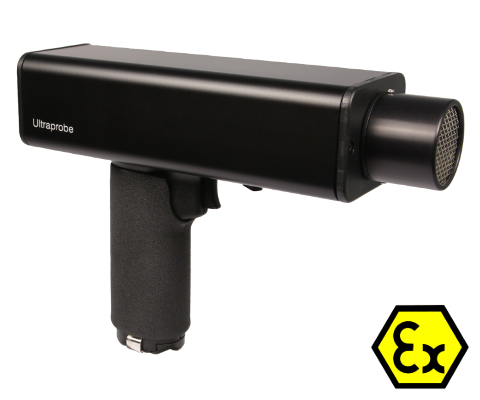

The industry’s most comprehensive ATEX-rated analog ultrasonic device!
Thanks to its flexibility and adaptability, the Ultraprobe® 2000ATEX can be used in many testing areas. This ATEX device delivers high performance not only for leak testing but also for mechanical and electrical inspection.
Detect compressed air and faulty steam traps to prevent machine failures.
Why choose this device?
-
Easy to use
-
Frequency adjustment 20–100 kHz
-
Precision analog meter with measurement mode function
-
Point to the fault and pull the trigger
-
Certified for operation in ATEX or EX zones
Intrinsically safe / ATEX:
-
FM and CSA approved intrinsically safe: Class I, Zone 1, Groups A-B-C-D
-
ATEX group IIC
-
CE approved
-
Relevant gases: methane, propane–ethylene–acetylene–hydrogen
-
See the certificate section for a copy of the certificate
Ultrasonic Technology – the right approach for inspection:
-
Ultrasonic technology is versatile and localized
-
Can be easily blocked or shielded
-
Can be used in noisy environments
-
Provides early warning of potential problems via ultrasonic sound changes
-
Very easy to use
The Ultraprobe® 2000ATEX reports data in three modes: audio channel (single headset, selected for heavy industry), uniquely designed dual-mode analog device, vibration analyzers, and sound recorders (via heterodyne output).
Adaptable to test any process equipment problem:
-
FREQUENCY ADJUSTMENT minimizes ambient noise, helping the user focus on the problem
-
MEASUREMENT MODE converts response time from real-time to average, allowing precise tuning for leak and mechanical inspection
-
Converts ultrasonic sound into audible sound
-
Sensitive only to ultrasonic frequencies; ignores low-frequency noise, allowing use in noisy environments
Standard kit includes everything needed for line inspection:
-

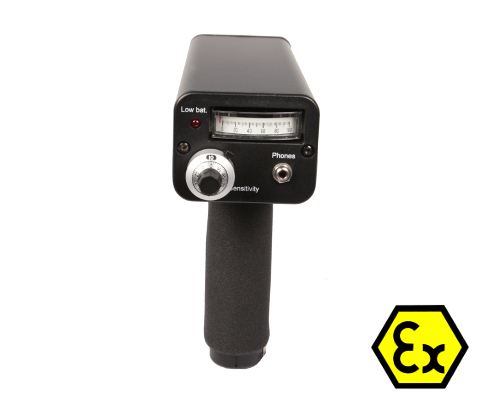

ULTRAPROBE pistol grip with housing, ballistic meter, frequency dial, 10-turn potentiometer, precision numeric calibration knob, bi-mode measurement selector switch, battery, low battery indicator, battery charger
-
Industrial noise-reducing headset
-
Battery charger kit, main body, and warble tone generator
-
Halliburton aluminum carrying case
-
Trisonic scanning module for airborne ultrasonic sounds such as pressure, vacuum, and electrical emissions
-
Rubber focusing probe to narrow scanning angle
-
Stethoscope (contact type) probe for bearings, steam traps, and valves
-
Extension probe increases stethoscope reach by 78 cm (31 inches)
-
Warble tone generator with amplitude selection knob for testing
-
Comprehensive instruction manual
Only this configuration is ATEX certified.
