Ultraprobe 9000

Properly Inspect, Store, and Manage Data!
The Ultraprobe 9000 digital ultrasonic inspection, data storage, and retrieval system is versatile and easy to use.

This Ultraprobe will assist you in your inspections with its quick and simple operation (most operators learn it within 15 minutes).

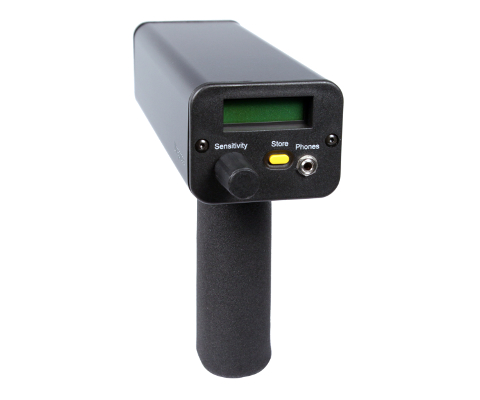

For troubleshooting or pre-planned routes, you can easily view data on the display panel and record it by pressing a button. The easy-to-read panel shows calibrated decibel readings and a 16-segment bar graph, records instant sound intensity changes, and simultaneously logs peaks in the scanned area.

Applications:

• Detect early bearing failures and lubrication problems when setting up bearing routes

• Find and report leaks, including cost-per-leak reports via DMS

• Inspect defective steam traps

• Monitor storage or leakage problems in electrical systems

Why choose this device?

• Easy operation

• Adjustable frequency range: 20–100 kHz

• Accurate and repeatable digital data

• Ideal for spot troubleshooting and data collection programs

• Effectively manage and report asset condition with free licensed Data Management Software (DMS)

Ultratrend DMS™ Data Logging Capabilities:

• Manage routes

• Upload and update via USB connection

• Multiple data views

• Historical tables

• Trend charts

• Save database and reports as Excel documents

UE Systems’ unique Spin & Click™ technology enables fast, advanced, and simple inspections!
You’ll be surprised how much you can achieve with just two controls — simply “spin” and “click” for quick, easy inspection.

Functions:

• Store data

• Adjust frequency and sensitivity

• Set basic operating modes

• “Snapshot,” “Peak Hold,” and “Real-Time” functions — and more!

• Suitable for hazardous environments (ATEX or EX models)

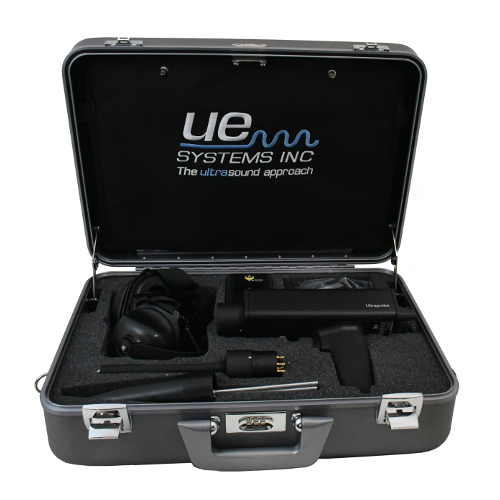

Ultraprobe 9000 Standard Package Includes:

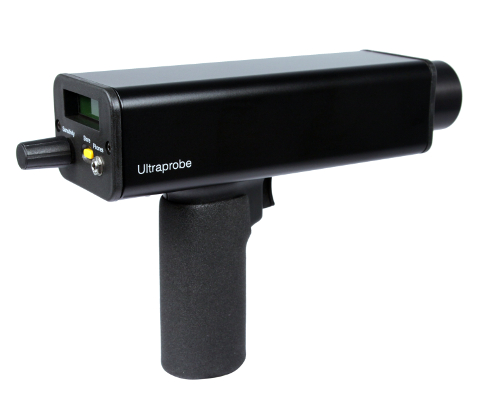

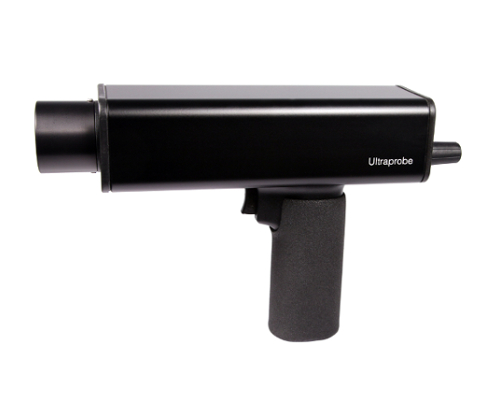

• Pistol-grip main control unit (display, spin & click frequency control, data input/storage, headphone, battery, I/O port, ignition on/off switch, and module socket)

• Industrial noise-reducing headset

• USB data cable

• Battery charger and tone generator

• Zero Halliburton aluminum carrying case

• Comprehensive instruction manual

• Free DMS software license and updates

Kit Configurations for Different Components:

UP9000LRM – ULTRAPROBE 9000 LONG RANGE KIT

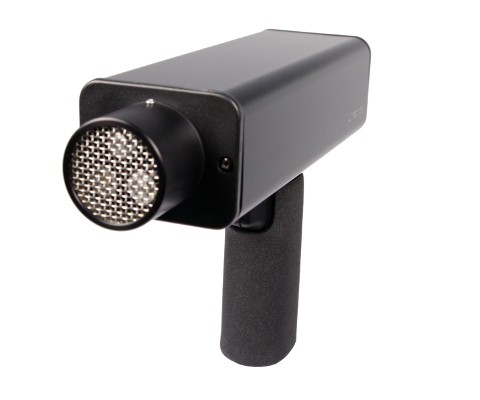

• Trisonic scanning module for airborne ultrasonics (pressure, vacuum, and electrical emissions)

• Rubber focusing probe to narrow reception band and reduce ultrasonic interference

• Stethoscope (contact type) probe for internal ultrasonic monitoring of bearings, steam leaks, and valves

• 78 cm (31 in) extension probe kit for extended contact range

• Amplitude selector switch for sound testing

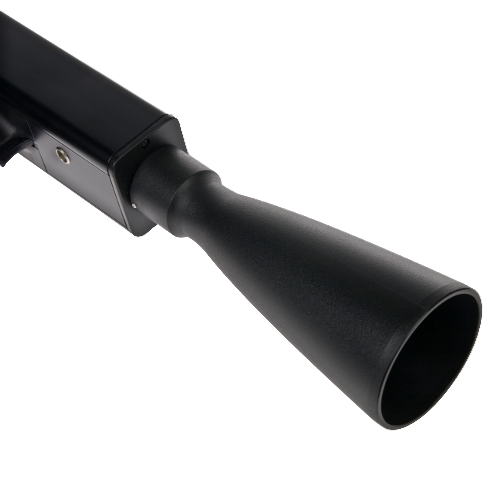

• Long Range Module (LRM-9) for more accurate detection of leaks or electrical emissions

UP9000CFM – ULTRAPROBE 9000 CLOSE FOCUS KIT

• Trisonic scanning module for airborne ultrasonics

• Rubber focusing probe for narrow-band reception

• Stethoscope (contact type) probe for bearings, steam leaks, and valves

• 78 cm (31 in) extension probe kit

• Amplitude selector switch

• Close Focus Module (CFM-9) for detecting low-level or vacuum leaks

UP9000KT – ULTRAPROBE 9000 KIT

• Trisonic scanning module

• Rubber focusing probe

• Stethoscope (contact type) probe

• 78 cm (31 in) extension probe kit

• Amplitude selector switch

UP9000SC – ULTRAPROBE 9000 STETHOSCOPE/SCANNER KIT

• Trisonic scanning module

• Rubber focusing probe

• Stethoscope (contact type) probe

• 78 cm (31 in) extension probe kit

UP9000S – ULTRAPROBE 9000 SCANNER KIT

• Trisonic scanning module

• Rubber focusing probe

UP9000C – ULTRAPROBE 9000 STETHOSCOPE KIT

• Stethoscope (contact type) probe

• 78 cm (31 in) extension probe kit

All Ultraprobe devices are CE certified.
